DLA Series

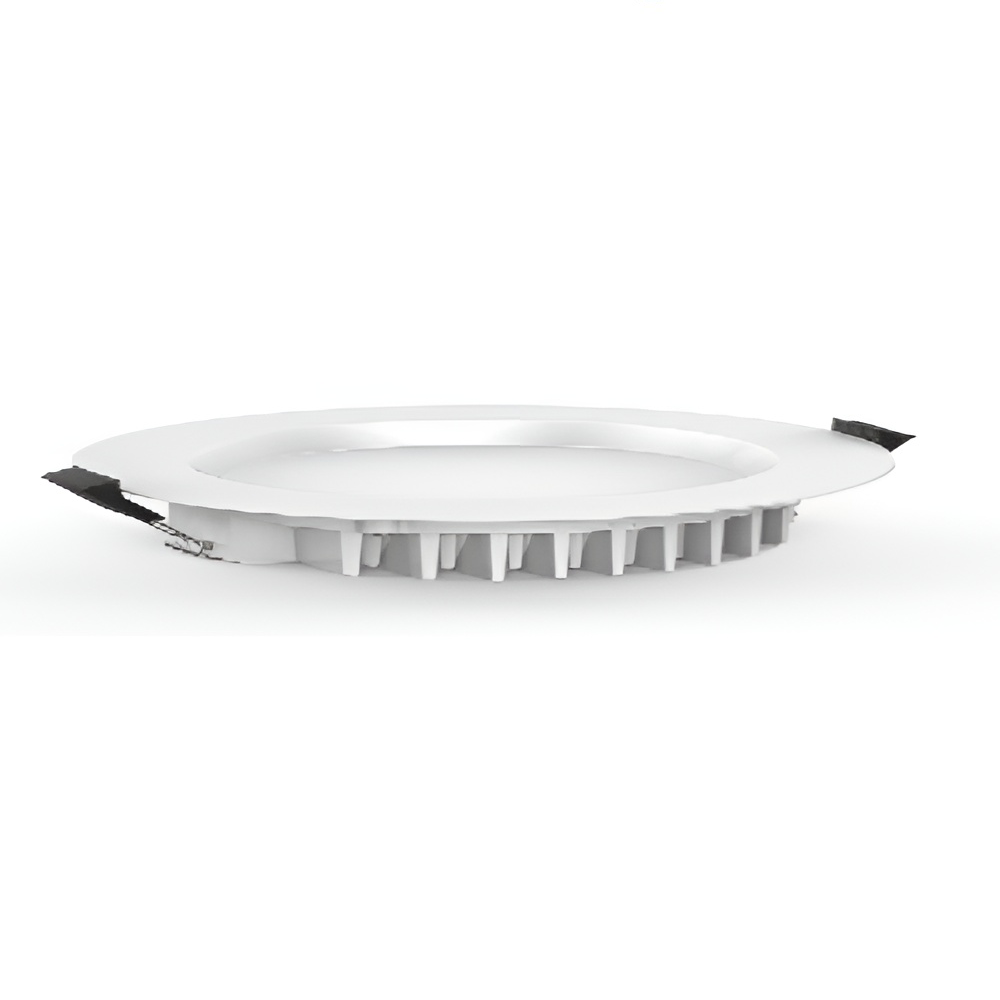

Able Recessed Downlight Series
Description
The Able range of downlights are practical and simply designed to meet a range of applications on a budget. Manufactured from die-cast aluminium with SMD LEDS slightly recessed from the trim and with a PMMA diffuser for even light distribution.
- IP44 suitable for bathrooms/kitchens.
- Colour temperature selection via a dip switch 3000K, 4000K or 5700K.
- Remote flicker free driver, with a flex and plug
Additional information
| Part Number | DLA85 / DLA110 / DLA145 / DLA170 / DLA190 |
|---|---|
| Wattage | 10W / 13W / 18W / 18W / 25W |
| Delivered Lumens (3000K) | 730lm / 1090lm / 1510lm / 1510lm / 2140lm |
| Delivered Lumens (4000K) | 780lm / 1140lm / 1550lm / 1550lm / 2420lm |
| Delivered Lumens (5700K) | 720lm / 1130lm / 1560lm / 1560lm / 2240lm |
| Weight (KG) * | 0.3 / 0.5 / 0.6 / 0.7 / 0.8 |
| Output Current (mA) | 250mA / 350mA / 500mA / 500mA / 700mA |
| IP Rating | IP44 (Downlight), IP20 (Driver) |
| CCT Options | Colour Change Selectable – 3000K, 4000K, 5700K Options |
| Beam Angle | 90° |
| CRI | ≥80 |
| Input Voltage | AC200-240V |
| Frequency | 50/60Hz |
| Dimming | Triac, 0-10V and Dali Dimming Capable with appropriate Driver |
| Colours | White, Black and Silver |
| Warranty** | 3 Years |
| Lifetime | >50,000 Hours L70/B50 |
| Note | *Not including driver |
