DLE Series

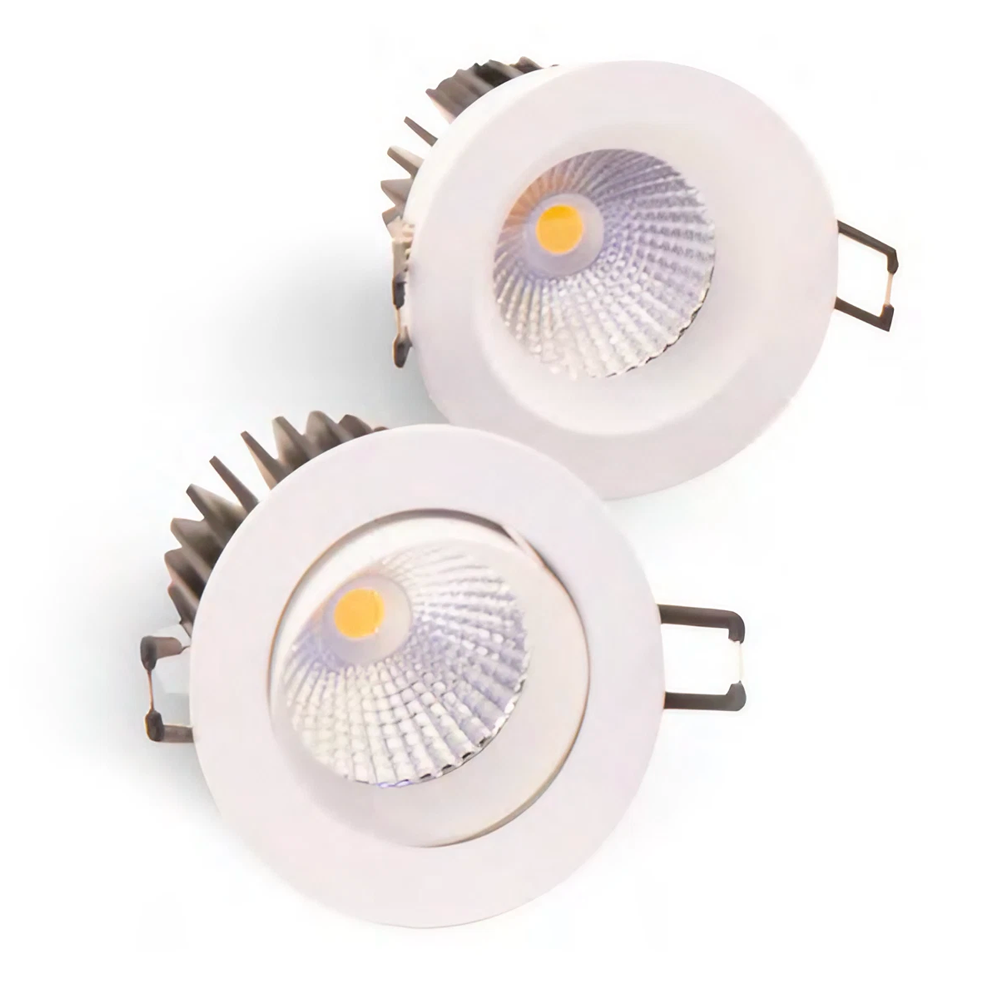

EDGE Recessed Downlight
Description
Get the Edge downlight is compact, low glare, great value option
for a variety of mlighting solutions.
- Fixed and adjustable options.
- Diecast aluminium heat sink and reflector.
- COB recessed LED and seperate flicker free driver with flex and plug.
- A range of driver options (Triac,1-10V and Dali).
- IP65 options available.
- Available in various sizes and wattage up to 60W.
Products Specifications
Additional information
| Part Number | DLE80-10W / DLE100-10W / DLE100-15W / DLEA80-10W / DLEA100-10W / DLEA100-15W |
|---|---|
| System Power | 10W / 10W/ 15W / 10W / 10W / 15W |
| Delivered Lumens ±5% (4000K) | 1000lm / 1090lm / 1500lm / 1000lm / 1000lm / 1500lm |
| Fitting Style | Fixed / Adjustable |
| Weight (KG) * | 0.3 / 0.6 / 0.6 / 0.3 / 0.3 / 0.6 |
| Output Current | 250mA / 250mA / 350mA / 250mA / 250mA / 350mA |
| IP Rating | IP20, IP65 |
| CCT Options | 3000K, 4000K and 5700K Options |
| Beam Angle | 24° (N), 36° (M), 60° (W) |
| CRI | >80 |
| Input Voltage | AC200-240V |
| Frequency | 50/60Hz |
| Dimming | Triac, 0-10V and Dali Dimming Capable with Appropriate Driver Non Dimmable |
| Colours | White and Black |
| Lifetime | >50,000 Hours L70/B50 |
